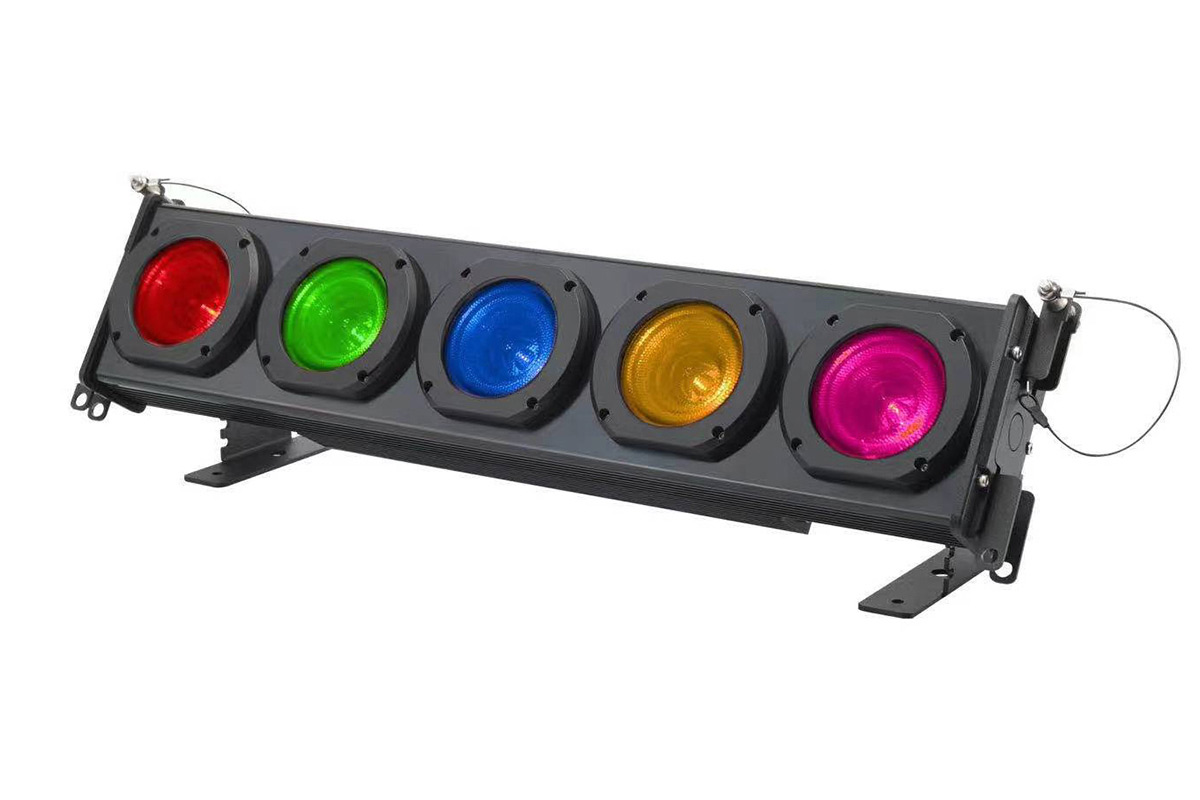

iKolor K5 Matrix

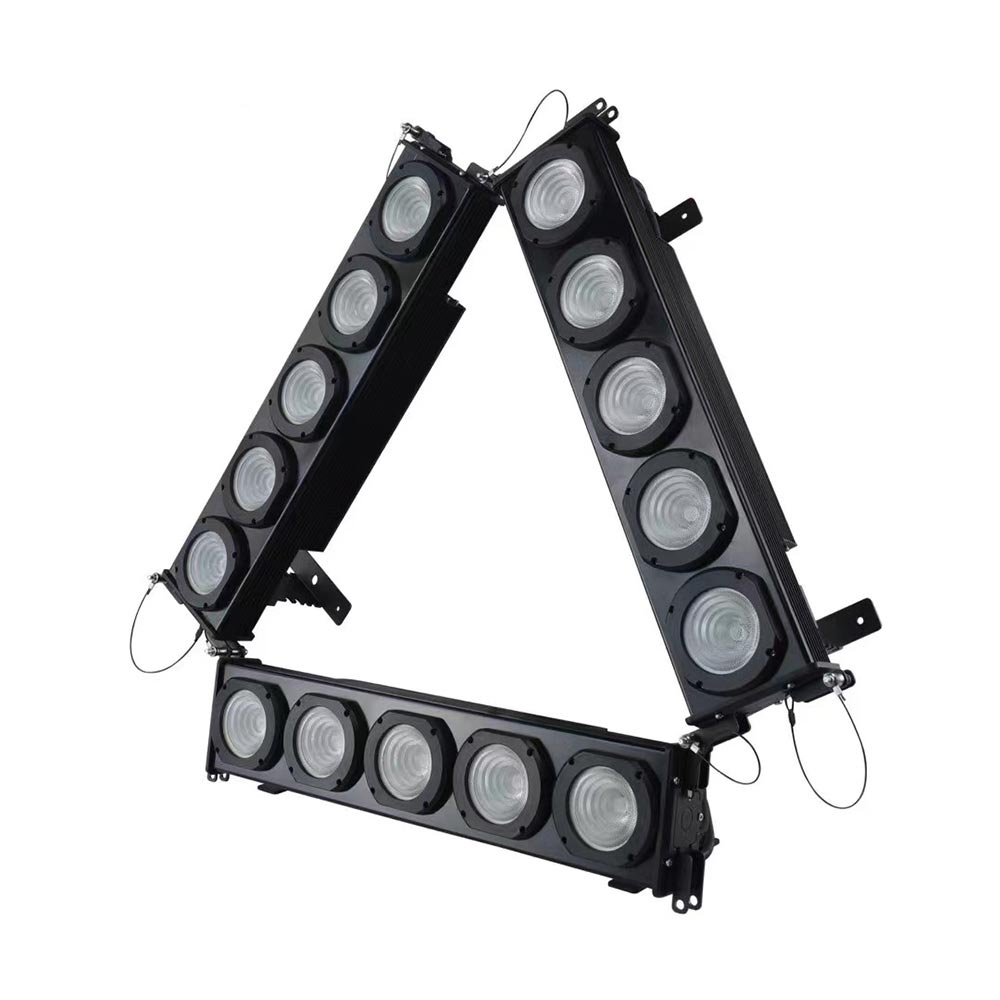

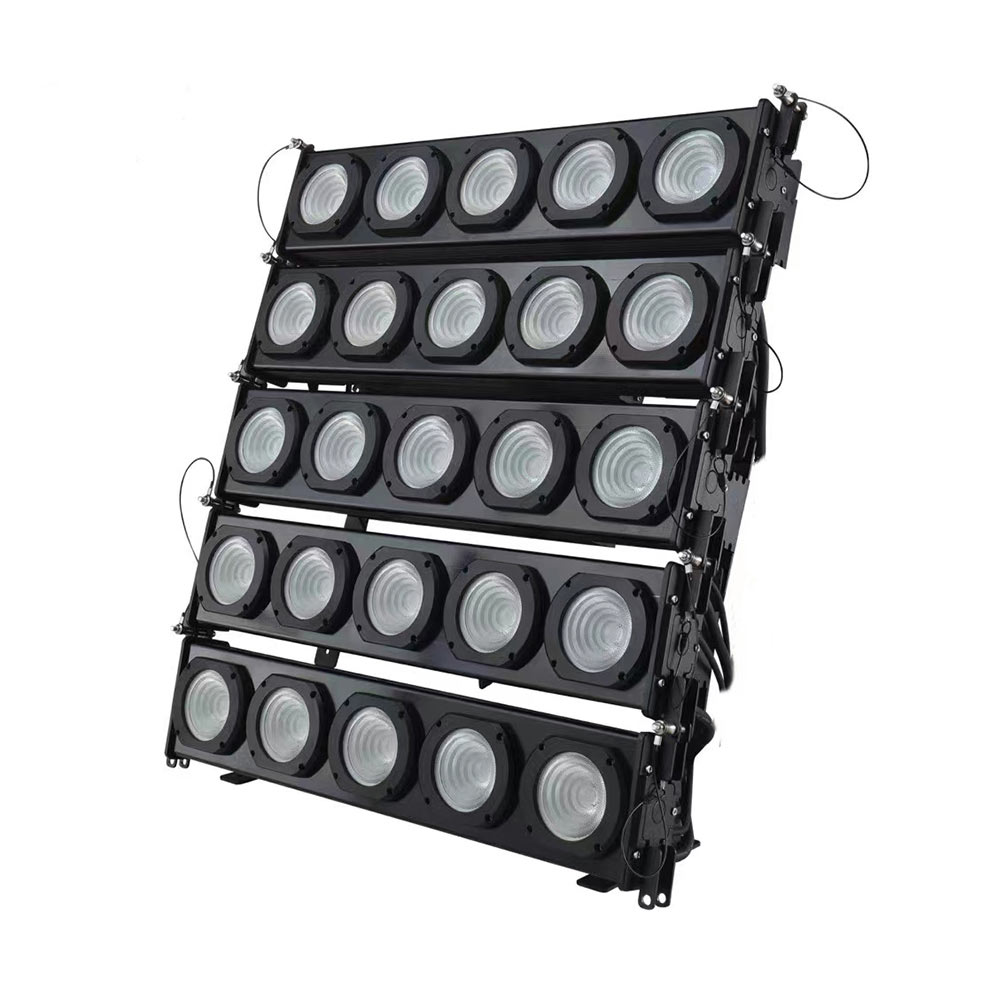

K5 is an ideal powerful led matrixlight designed for outdoor events, it has smart management kit. It is able to joint together easily by side and end. Individual LED control function and RGBW quad LEDs offer countless colors help you create more possibilities for shows.

SOURCE&ELECTORICAL

Power Consumption: 100W

Input voltage: AC90V-240V, 50-60Hz

Light source: 15W RGBW 4in1 LED X5pcs;

                      20W RGBWA 5in1 LED X 5pcs; optional

Lifetime: 100,000hours

OPTICAL&CONTROL

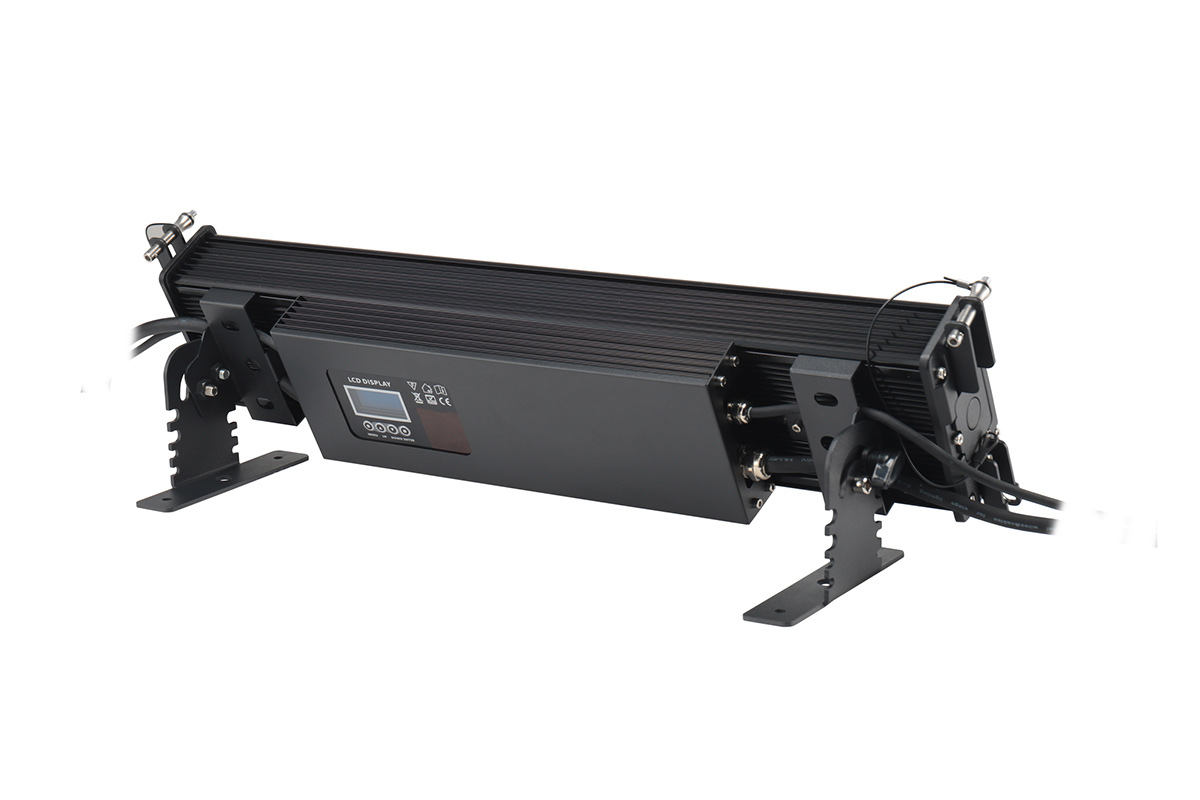

Display: LCD display

Lens angle: 30°

DMX channels: 6CH/7CH/21CH/30CH for 4in1 option

                         6CH/8CH/26CH/35CH for 5in1 option

Dimmer level: 0-100% linear dimming system

Refresh rate: 4KHz

Cooling system: strong heat-sink

IP rate: IP65

Control Mode: DMX 512 control; Master/Slave, Stand-alone mode; RDM

Hoursing: Die-casting aluminum body and iron brackets

DIMENSION&WEIGHT

Dimension: 650(L)X160(W)X180(H)mm

N.W.: 5‍.4 kgs

G.W.: 6 kgs

‍

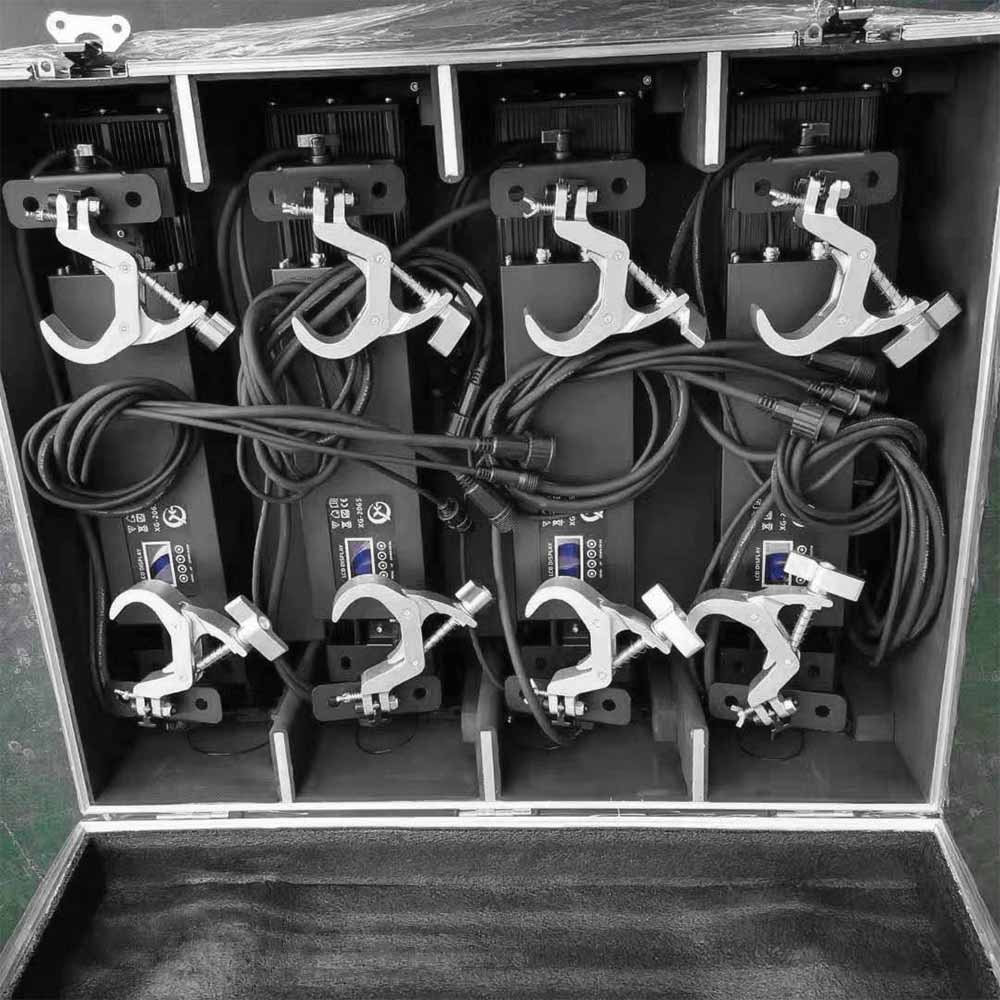

ACCESSORIES

Safety cable: 1pc

‍DMX cable: 1pc

Power cable: 1pc

Clamp: 2pcs
