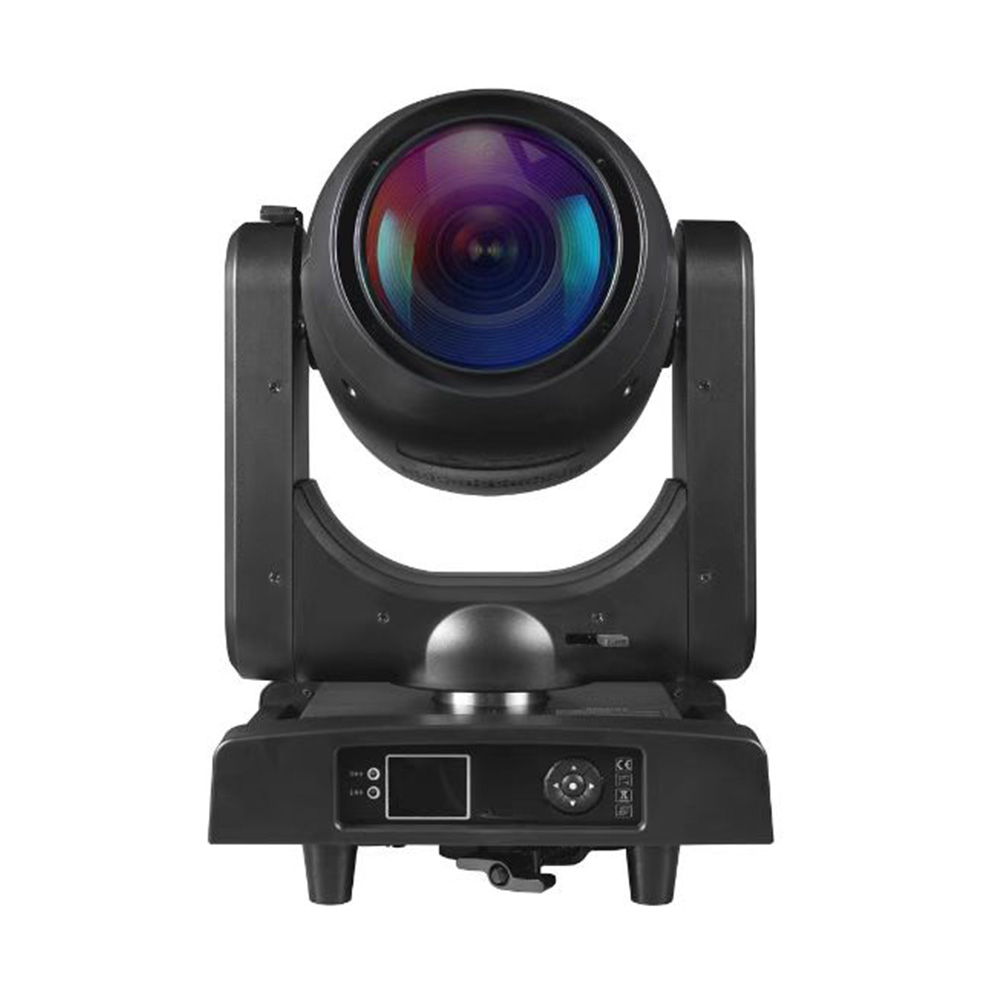

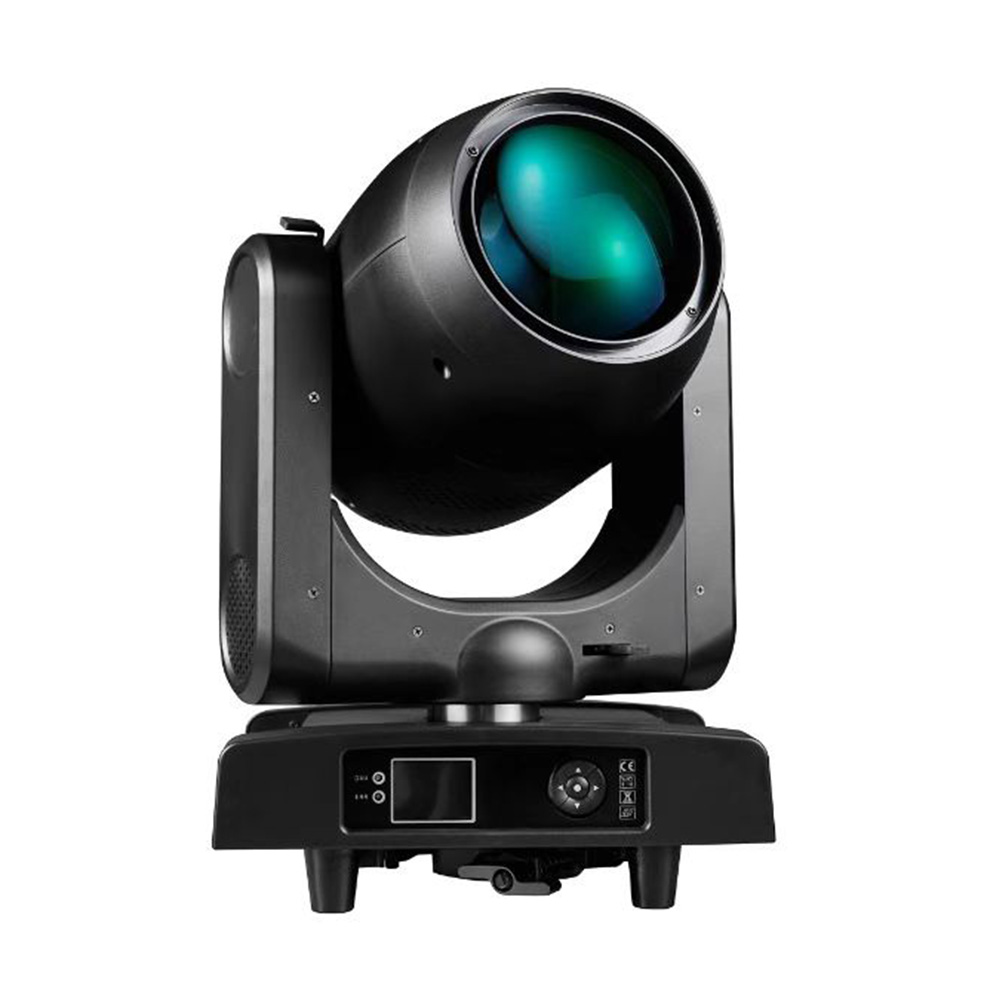

LED Beam 300S Sharpy

LED Beam 300S is a ideal led beam moving head light for tour shows/indoor events where in need of small size and high output fixtures, for example:
1. Same as Sharpy's dmx library
2. Stronge Beam effect
3. ldeal cooling operation,low noise
4. Compact design, Light Weight

Description：	LumiEngin 300W White LED Sharpy Beam 3in1 Moving Head
Categories：	LED Moving Heads

Whatsapp Add Quote

product warranty

No MOQ Req

OEM/ODM

Warranty

OL Service

Quality

Parameters

SPECIFICATION

Power consumption: 350W
Input voltage: AC 90V-240v, 50-60Hz

Light source: LumiEngin 300W whilte LED.

Life time: 60,000hours

FEATURES

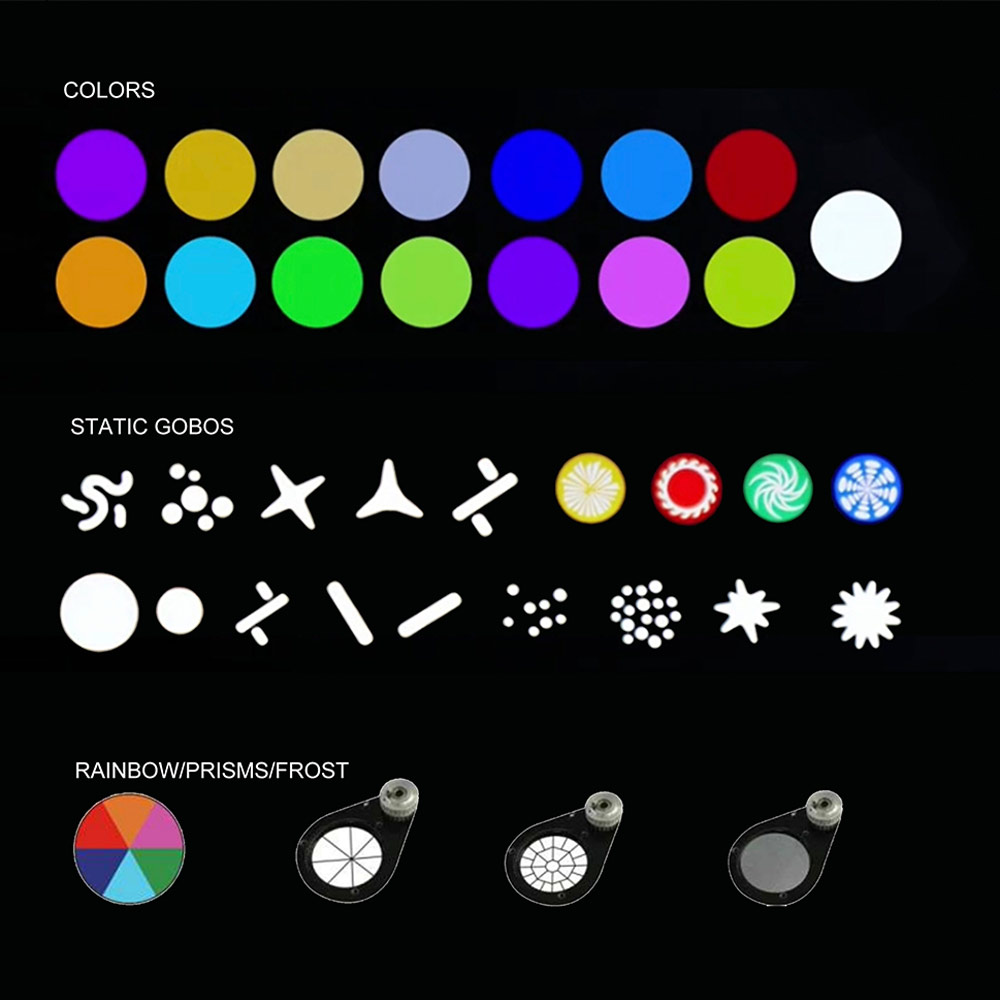

Color wheels: 14 colors +Open

Static gobo wheel: 17 fixed metal gabos + Open

Prism: 8-facet +16facet dual circular ratating prisms and honeycomb prism

Beam angle: 2°

Dimmer: 0-100% linear dimming system

Motorized PanTilt

Pan movement range: 540°

Tilt movement range: 270°

8bit/ 16bit movement solution optional
Automatic Pan/Tilt position correction control

CONTROL
DMX Channel: 16/20CH
Control mode: DMX512 control, Stand-alone, Master Slavo synchronization.

CONSTRUCTION

Display: LCD display

Data in/out socket: 3-pin+5-pin DMX XLR

Power connector: PowerCon In/out

Protection rate: IP20; for indoor use

Housing: heal-proof plaslic + module pressing alloy material. black silver white color, optional

PHYSICAL

Dimensions: 320(L)*220(W)*480(H)mm

Packing size: 365(L)*280(W)*600(H)mm

Net Weight: 13.50kgs

Gross Weight: 16.50kgs

MISCIOPTIONS

Power cable: included

Mounting clamp: included

Safety cable: included

Flight case: optional

KEY FEATURES
1.Easy-to-get library ( same as sharpy's personality)
2. Sharpy beam effect
3. ldeal cooling operation, low noise
4. Compact design, Light weight
