SPECIFICATION
Power consumption: 1560W

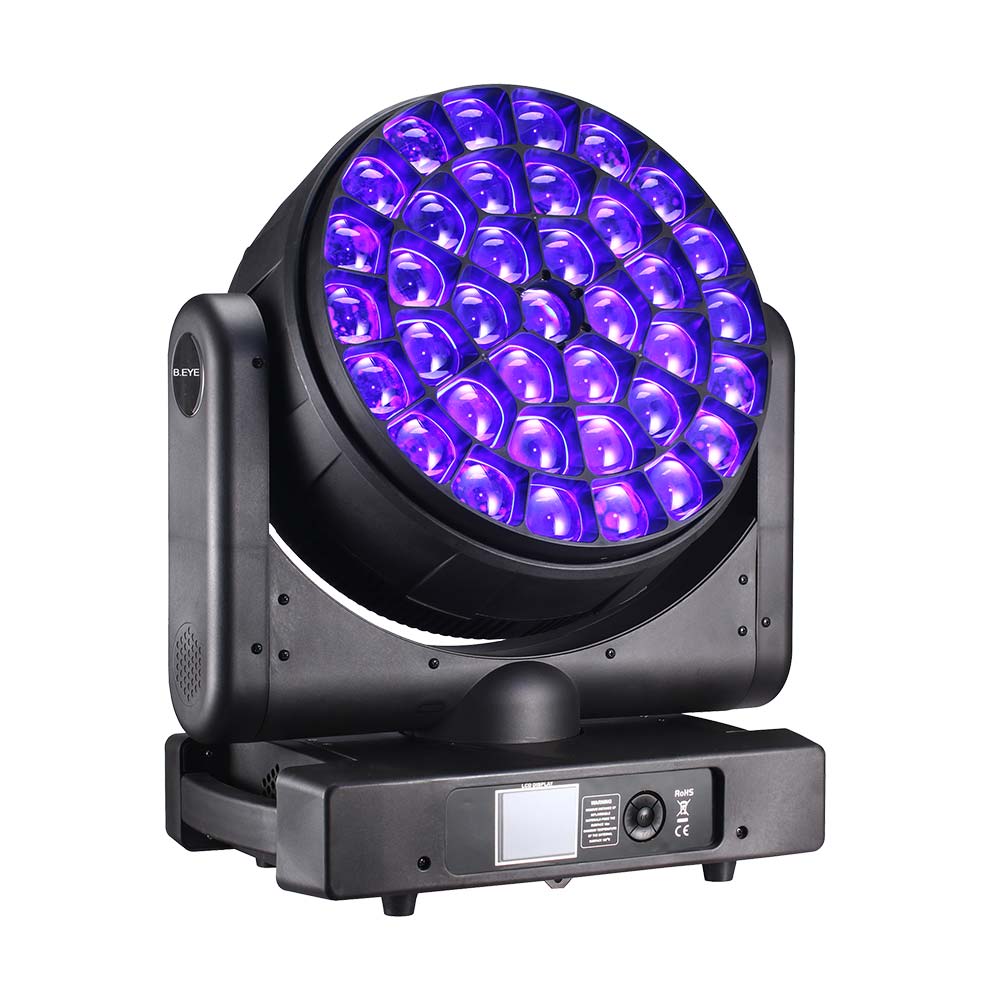

Input voltage: AC 90V-240v, 50-60Hz Light source: 40W RGBW LED X37pcs Fuse: 10A Life time: 60,000hours CTO: 2500-10000K linear adjustment Zoom: Motorized control 4°-55° Dimmer: 0-100% linear dimming system Strobe: 1-20Hz
Motorized Pan/Tilt Pan movement range: 540° Tilt movement range: 270° 8bit/ 16bit movement solution optional
Automatic Pan/Tilt position correction control
CONTROL
DMX Channel: 21CH / 22CH / 36CH /111CH / 148CH
Control mode: DMX512 control, Stand-alone, Master/ Slave synchronization; Sound Control

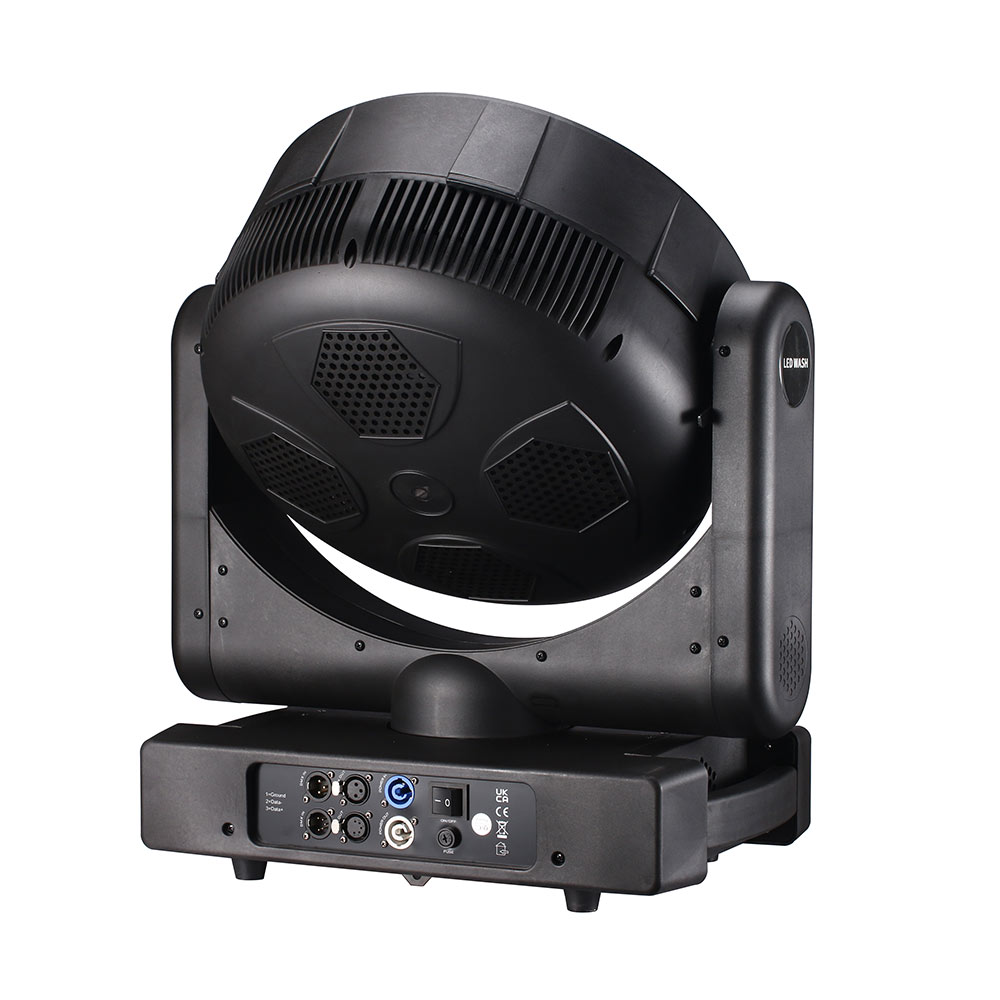

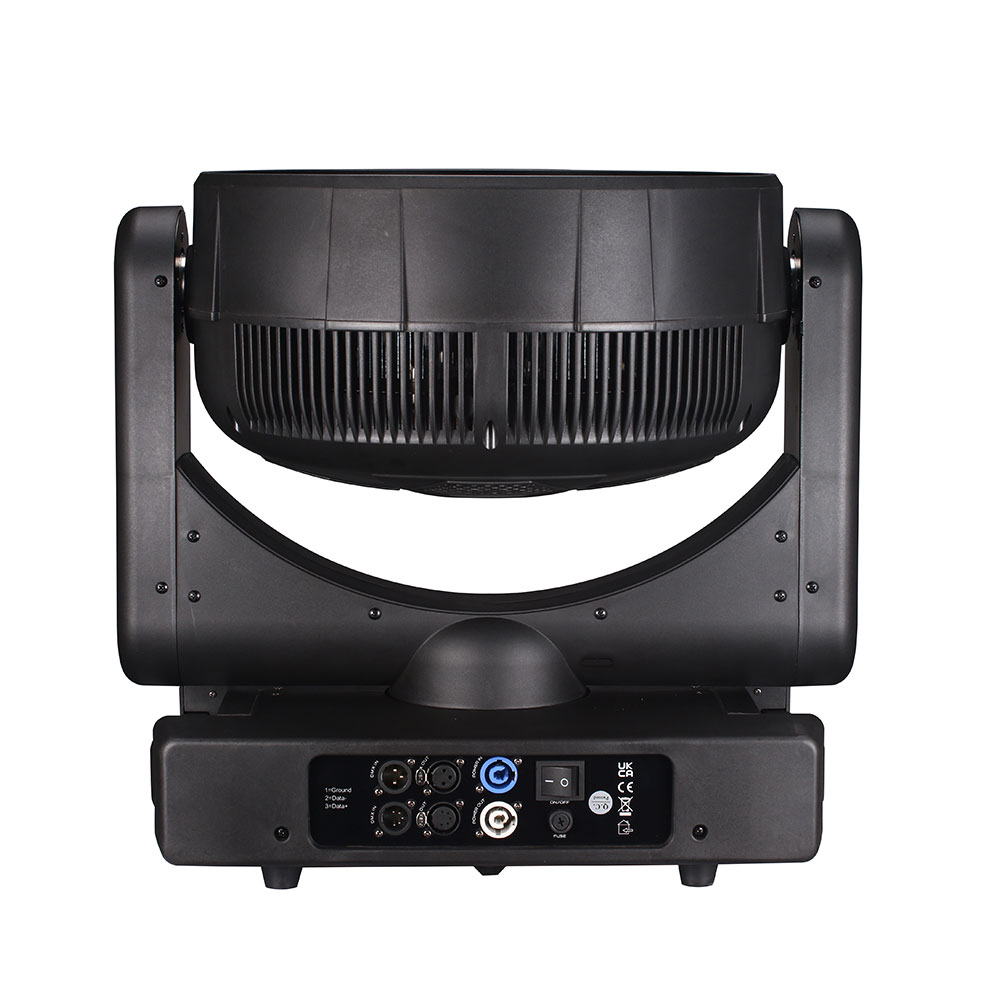

CONSTRUCTION Display: LCD display Data in/out socket: 3-pin/5-pin DMX XLR Powerconnector: PowerCON In+out |
Cooling: Fans control depends on working temperature Protection rate: IP20 Housing: heal-proof plastic+ module pressing alloy material. Black/ silver/white color, optional
PHYSICAL Dimensions: 496(L)*293(W)*590(H)mm Net Weight: 24.7kgs Gross Weight: 30.7kgs
ACCESSORIES Power cable: included Safety cable: included Folding clamps: included Flight case: optional
KEY FEATURES 1. Make powerful and excellent wash effects
2. Offer vivid pixel effect
3.Effcient motorized zoom control gives wide color coverage and spot effects 4. CTO from 2500K to 10000K available to be used as illumination light 5. Intelligent cooling system; reliable quality 6. The fixture offers beam+wash+pixel+bee eye multi effects |
