Electrical Input voltage range: AC110V-240V 50/60Hz Power consumption: 580W max PF≧0.97 Data Connection: 3pin/5pin DMX XLR Power Connection: True1 IP rated Input/Output
Light Source Light Source: 450W White LED engine CCT: 7500K LED average life: +20,000H
Optical systems Motorized zoom range: 3.8°-48° Motorized focusing system Multiple speed strobe effect: 0-25Hz;1-13times/snd Iris: Fast iris diaphragm with adjustable dynamic effects, 5% to 100% open Frost: motorized frost filter Dimmer: 0-100% linear control
Prism/Colors/Gobos/Framing 5-facet circular prism With rainbow color wheel Color wheel: 7+open Rotating gobo wheel: 7+open With electronic frost filter Independent CMY color mixing system CTO color adjustable from 2700K-6800K Framing system: 4 individually positionable shutter blades, Rotation of the framing system module: +/- 60 °
P/T Movement Pan: 540° Tilt: 270° |
| Pan/Tilt position out-of-step auto-correction
Pan/Tilt: 16 bit precision scanning Fixed lock: horizontal/vertical lock
Control Control protocol: Standard DMX512 protocol+ RDM protocol sACN, Artnet; DMX Wireless; optional Channel Mode: Stand-alone mode, voice-activated, Master/Slave mode, DMX512 control Control channel: 34/36/56CH (1:1 as Diablo) Control panel: LCD display（15 second standby auto lock） Pan/ Tilt disengage (hold MENU and ENTER button)
Other Features 4 x16bit dimmer curves Flicker-free; optional 800Hz/1200Hz/3600Hz/15KHz/20KHz/25KHz flash rates

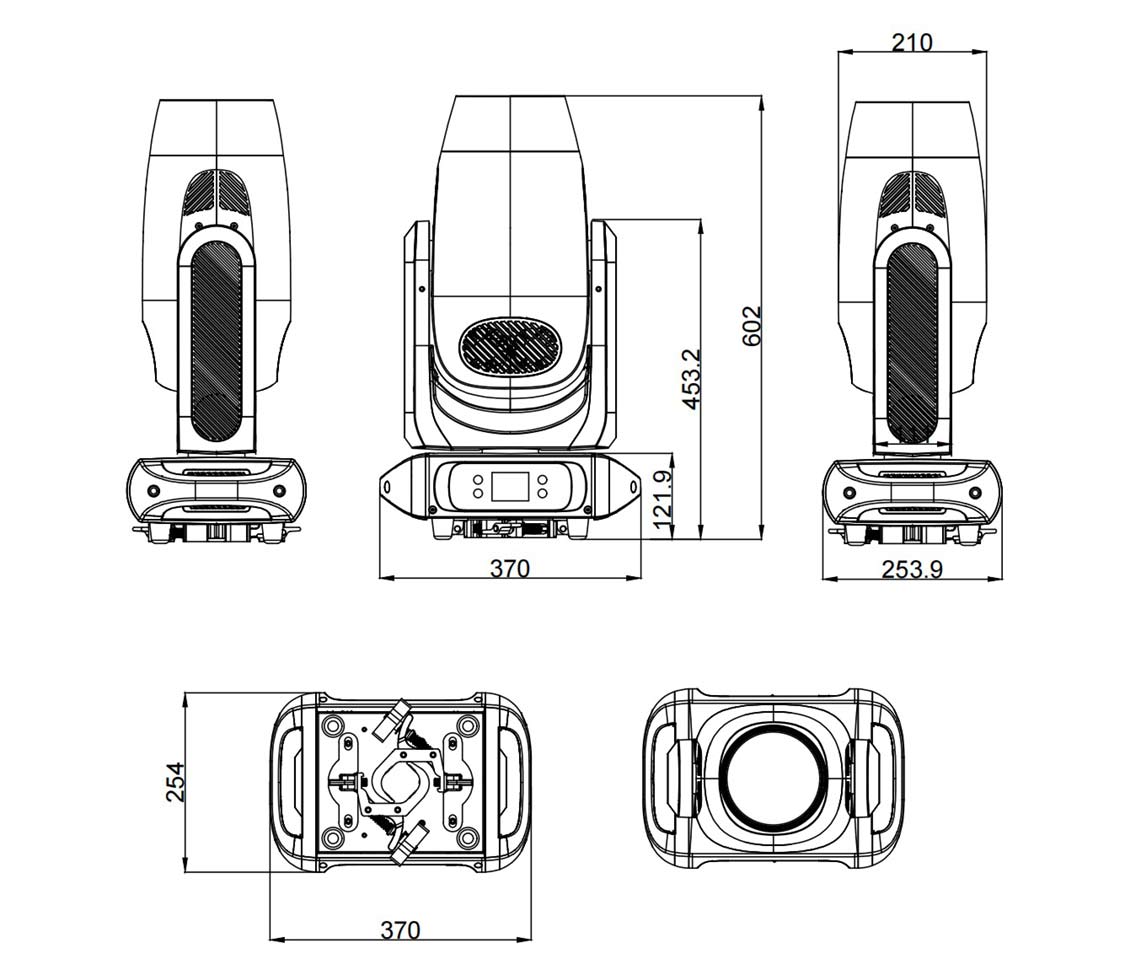

Housing Material: Plastic head+arm cover+aluminum base Dimension: 370x254x602mm Net weight: 22.6.0kgs Gross weight: 26.0kgs
Accessories Power cord: including DMX cable: including Folding clamp: including 2in1 flight case: optional |
